LED Replacement for Hella Talmu
Recommended accessories

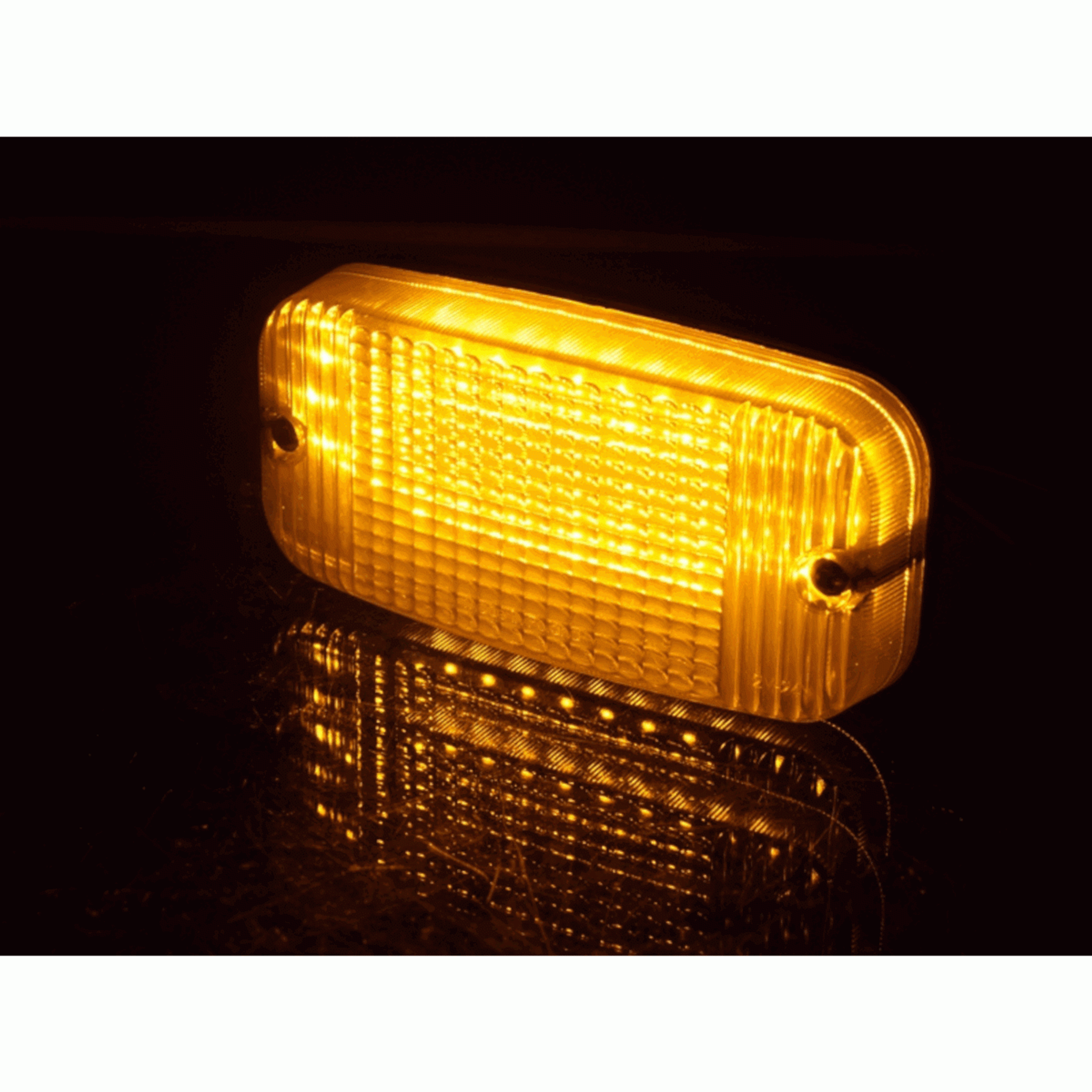

LED board for Hella Talmu DRL lights, designed to replace the existing BA15s bulb holder and provide a stylish, modern LED light.

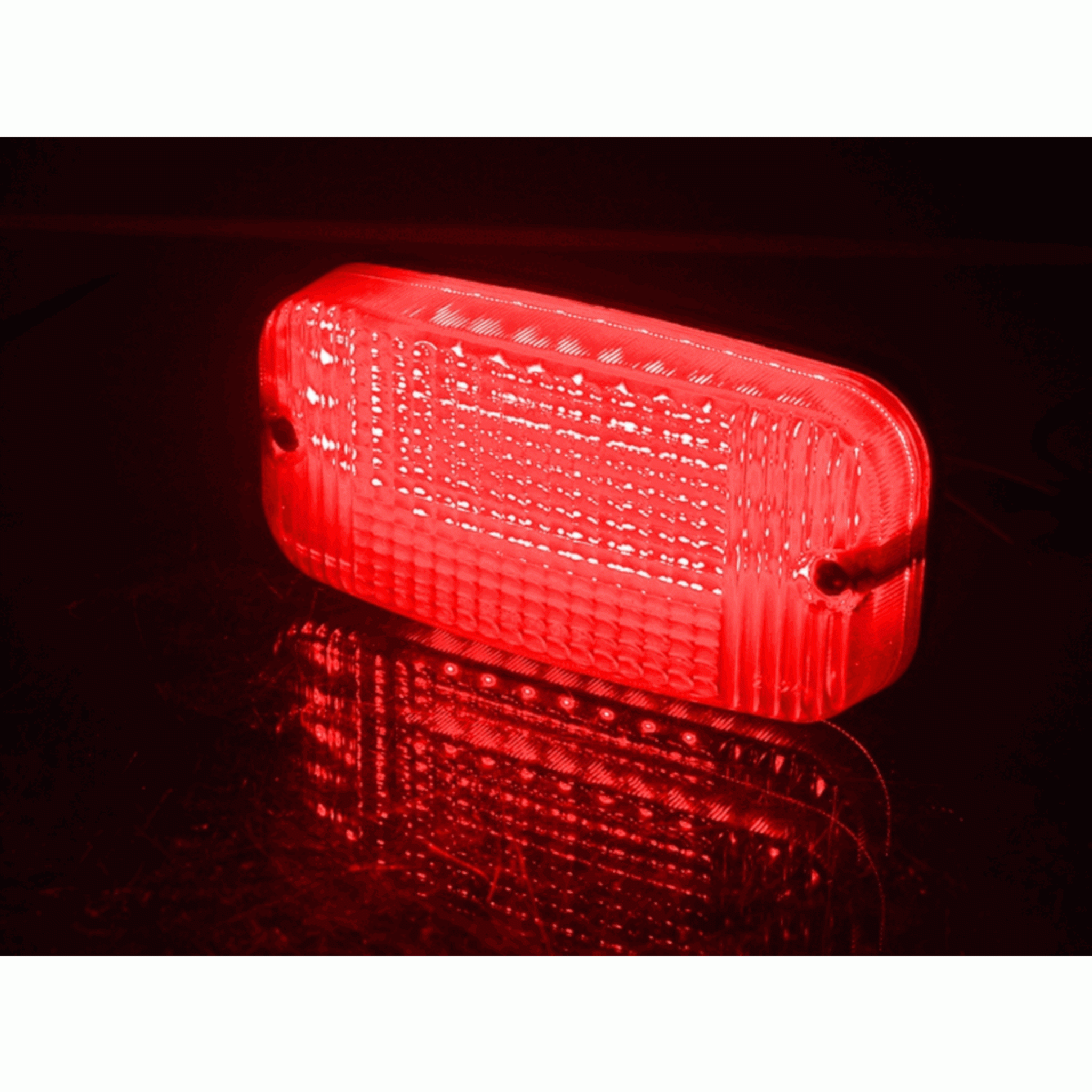

The dual-color LED board allows you to easily switch between two different light colors in the same lamp, but it can also be used with just one color.
The LED replacements are sold individually, except for the version with strobe lights, which comes as a complete kit including 2 LED boards and a control box.
For a more even light distribution that illuminates the entire lamp, an optional diffuser plate is available. It creates a stylish, neon-like lighting effect. See recommended accessories.
Voltage: 24V
Connection & Installation:

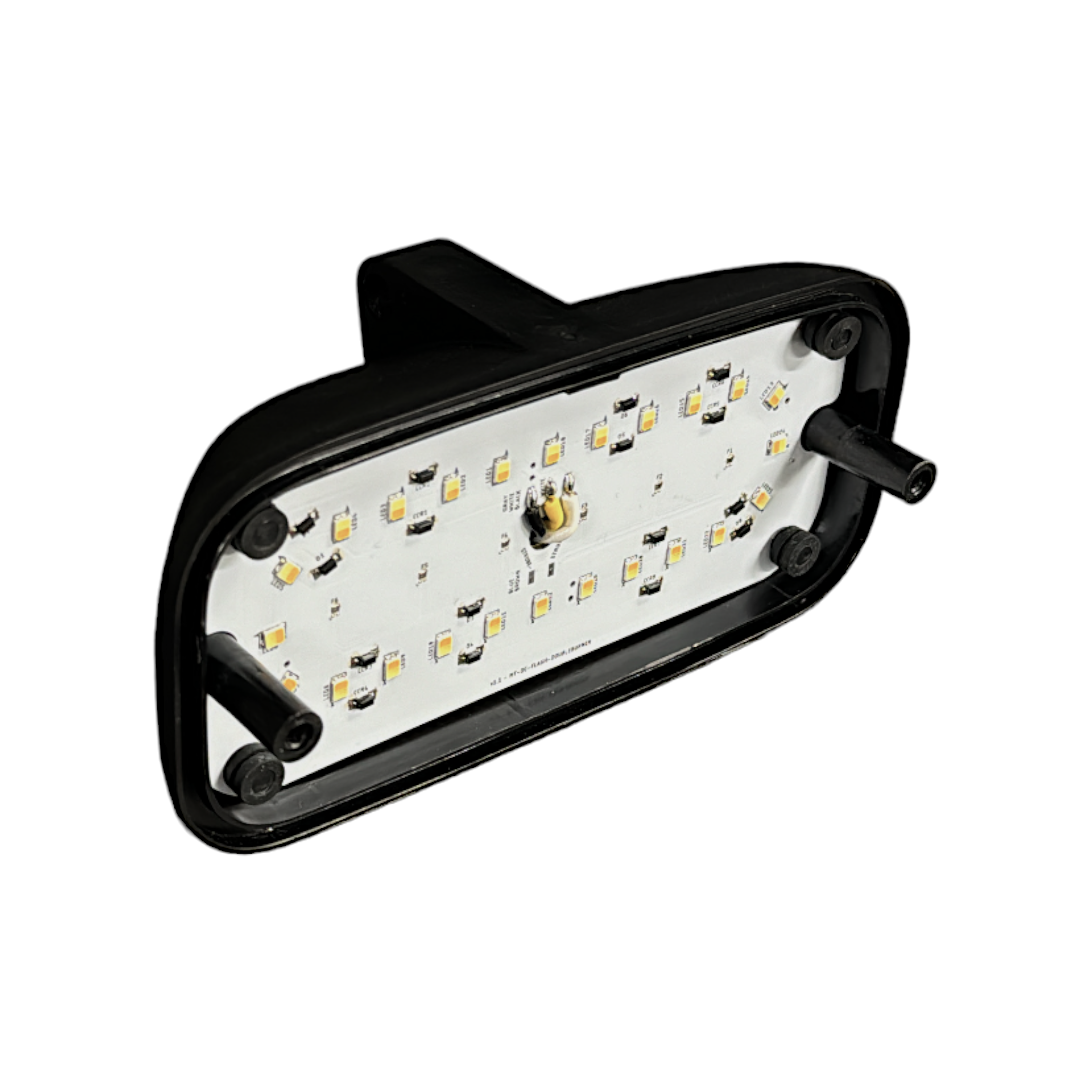

The LED board is connected via loose wires on the back and is easily installed in the Talmu lamp using the four included rubber gaskets.
Color Switching – Dual Color:
The board has three wires: one ground wire (negative) and one positive wire (+24V) for each color. Color switching can be controlled using a relay, for example.
Strobe Light & Dual Color:
The LED boards are connected to the control unit via a 7-meter cable with M8 connectors. The control unit has a 2-meter connection cable with five wires:
Grey: Negative (ground)
White: Positive for white position light
Blue: Positive for amber position light
Brown: Positive for strobe light
Black: Positive for welcome function
