Reflector Light for Headlight Scania NextGen

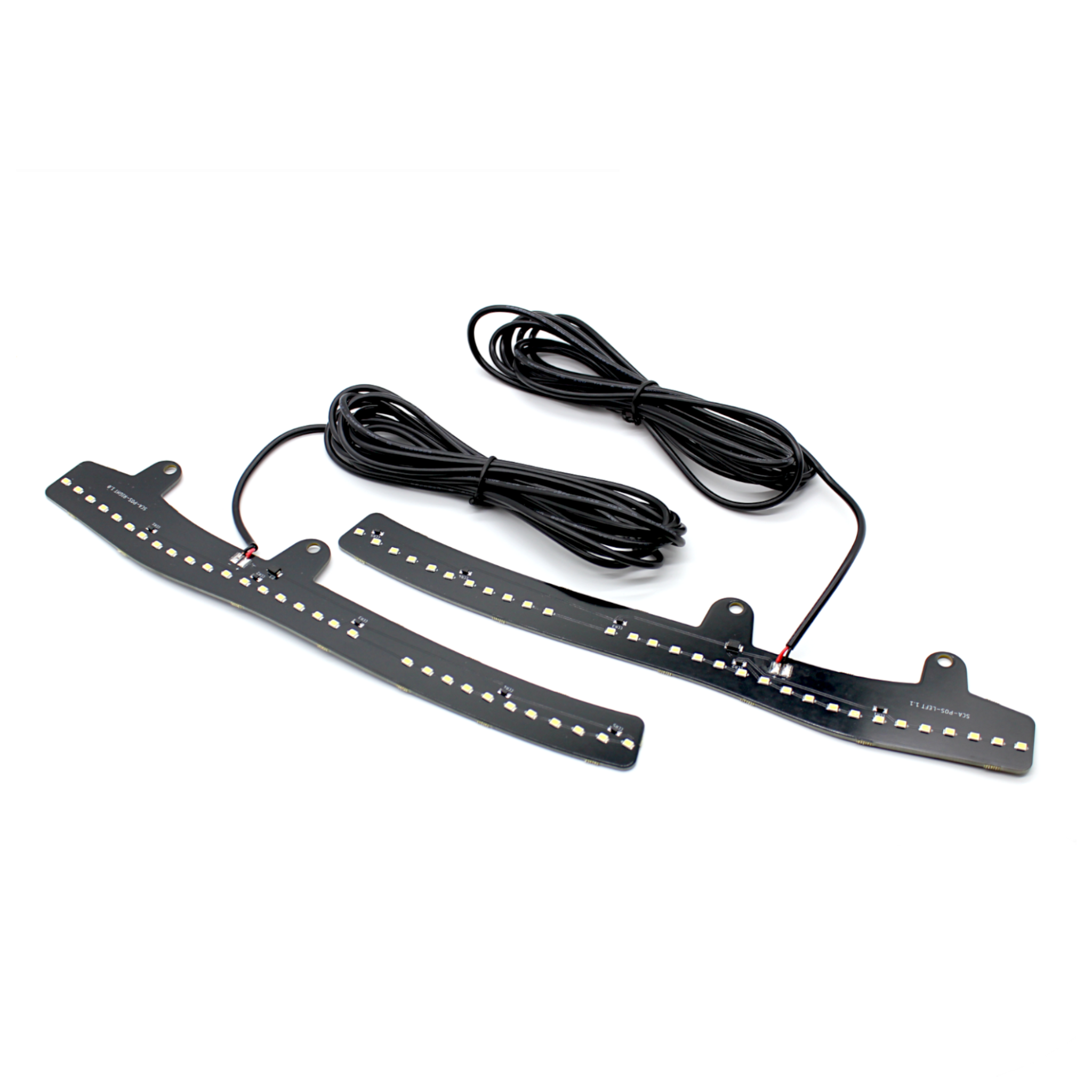

LED light plates designed to create a stylish light in the reflector on Scania Next Generation with LED headlights. This kit includes 2 light plates, 1 for each side.
Available in 4 different colours and 3 different versions: single-colour, dual-colour or dual-colour with strobe light.
Single-colour – Xenon White / Warm White / Amber / Yellow
Each light plate has a 3 metre cable which should be connected to, for example, a position light or alternatively to a switch if you want to be able to turn the reflector light off. There is one positive and one negative cable.
Dual-colour – Xenon White & Amber or Warm White & Amber
Each light plate has a 3 metre cable with one negative cable and two positive cables, one for each colour, allowing you to switch between them. Can be connected to, for example, a switch or relay.
Strobe Light & Dual-colour – Xenon White & Amber with Strobe or Warm White & Amber with Strobe

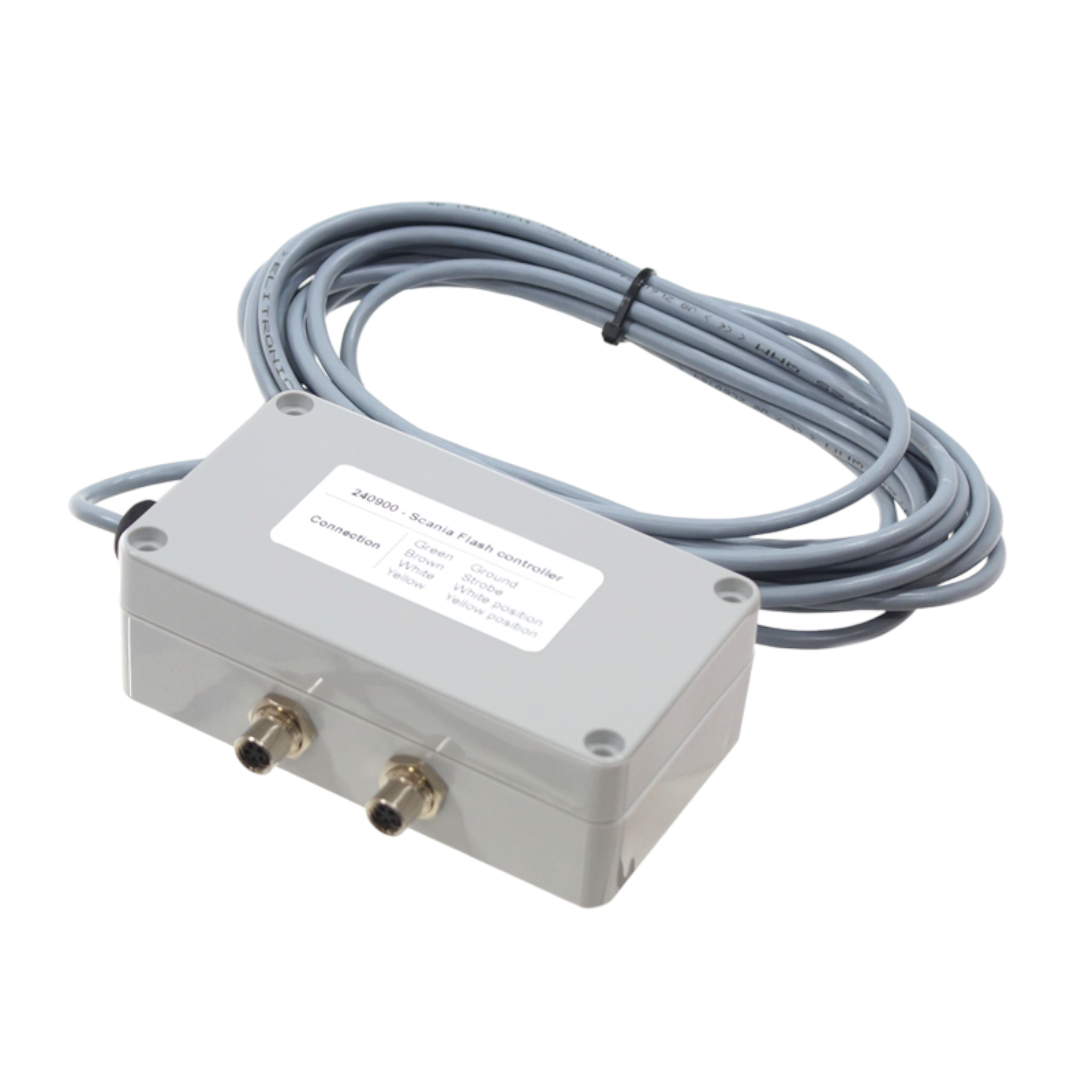

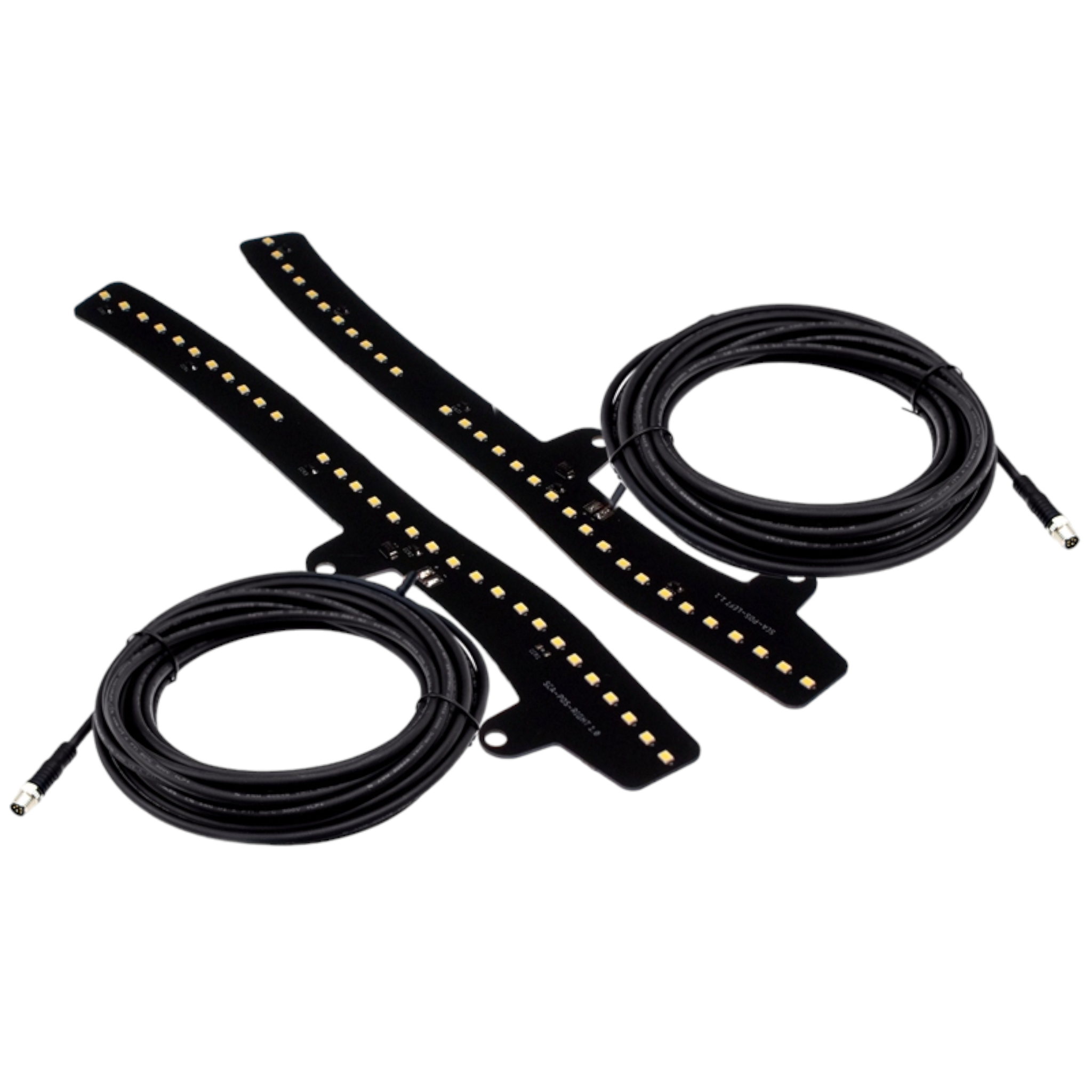

The light plate has a 6 metre cable with M8 connectors, which should be connected to the included control unit. The controller manages the two colours and automatically switches them off when the flashing light is activated.
To control the unit, there is an outgoing cable with 4 wires:
Negative – Green cable
Positive for white position light – White cable
Positive for yellow position light – Yellow cable
Positive for flashing light – Brown cable
During installation, the cables with the M8 connectors need to be cut, so make sure the joint is made waterproof and that the wires are connected to the correct colours.
Installation:
Installation is simple, and the only permanent modification to the headlight is a single hole, which can easily be sealed again. The light plates are installed inside the headlight and secured using two existing screws.
There are two screws near the doors that hold the headlights in place. These are loosened, after which the headlight can be swung to the side.
On top of the headlight, there is a large cover that can be loosened and removed. Under the cover, there is a large heat sink.
The two front screws on the heat sink are loosened and removed.
Slide the light plate sideways into the headlight so that the two pins fit into the holes in the heat sink. It is important that the light plate is positioned above the reflector. You should not be able to see the light source inside the headlight once installed.
The two screws are fastened through the light plates into the heat sinks.
Scania is a registered trademark and the use of the name is for reference purposes only. This product is not an original part and is not manufactured or approved by Scania. The use of the trademark name is only to indicate that the part is suitable for the truck.
