Juluen HB6 Strobe Light & Position Light Red

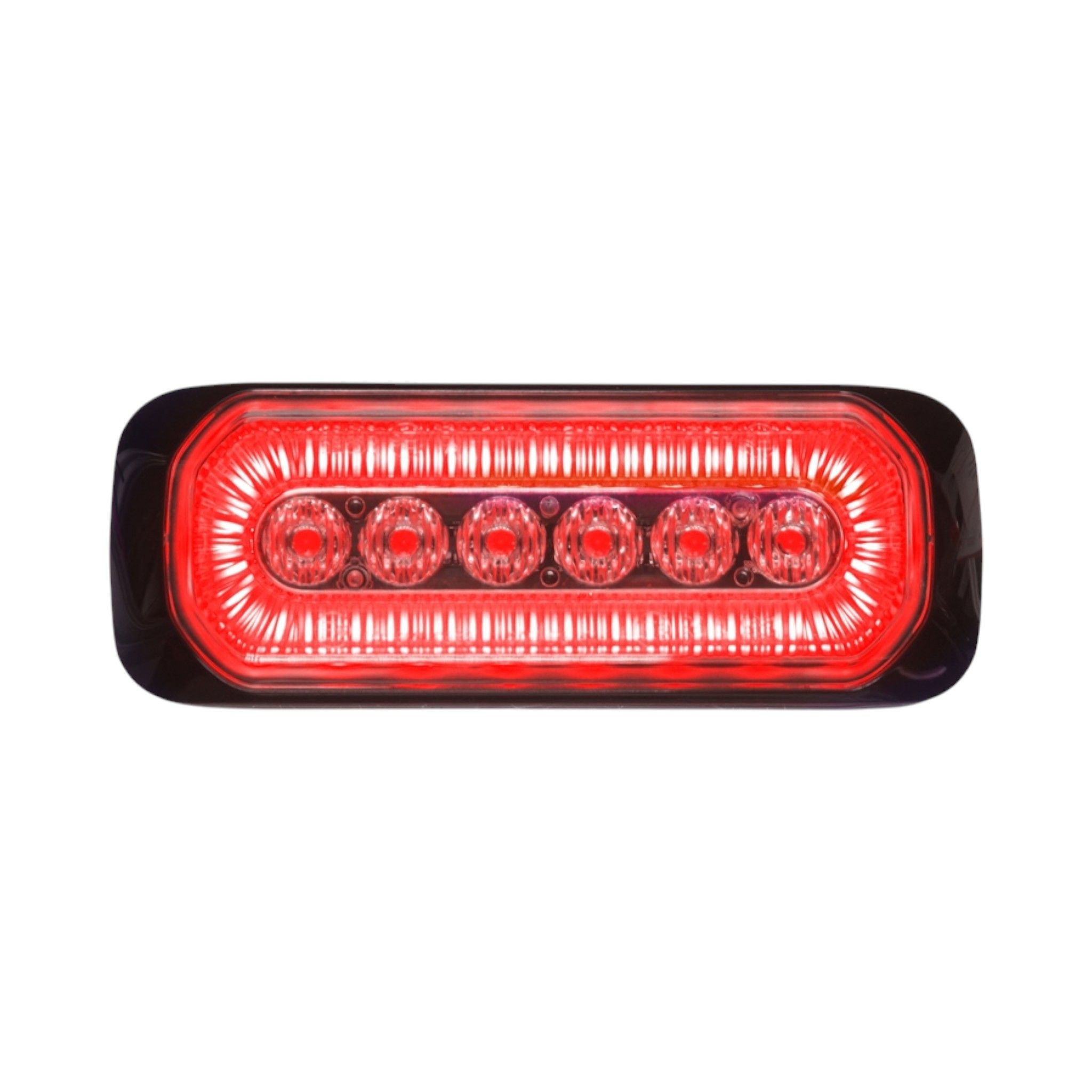

Halo Blitz HB6 from Juluen, LED Strobe Light with Built-In Halo Position/Side Marker Light

The Halo Blitz HB6 is an LED strobe light with an integrated halo position/side marker light. The lamp is available with position/side marker lights in red, white, and orange. A chrome frame is also available for a different look.

The strobe light and marker light can be controlled individually, and they can also be turned on simultaneously. This is a very stylish lamp and a more affordable option if you need both marker light and warning light. You avoid an extra unit that also needs to be mounted and connected.

The warning light has 14 different effects, and the lights can be set up in alternating groups, so they flash right/left or up/down on your vehicle.

The warning light and marker light are ECE-approved (R65 warning light, R7/R91 position light, and R10 EMC), allowing them to be used on public roads and highways.

Connection:

• White = Plus for marker light (12V-24V)
• Red = Plus for warning light (12V-24V)
• Black = Minus/Ground
• White = Synchronization, flash pattern, and grouping

Flash Pattern: When you pulse the yellow wire to plus, the lamp changes to the next flash pattern. Three quick pulses set the lamp to flash pattern 1.

Grouping: When you connect both red and yellow to plus at the same time, the grouping setup is initiated. The lamp will then flash once or twice to indicate the selected group. You can change the group by pulsing the yellow wire to plus. As soon as you turn off the lamp, it will remember the set group.
