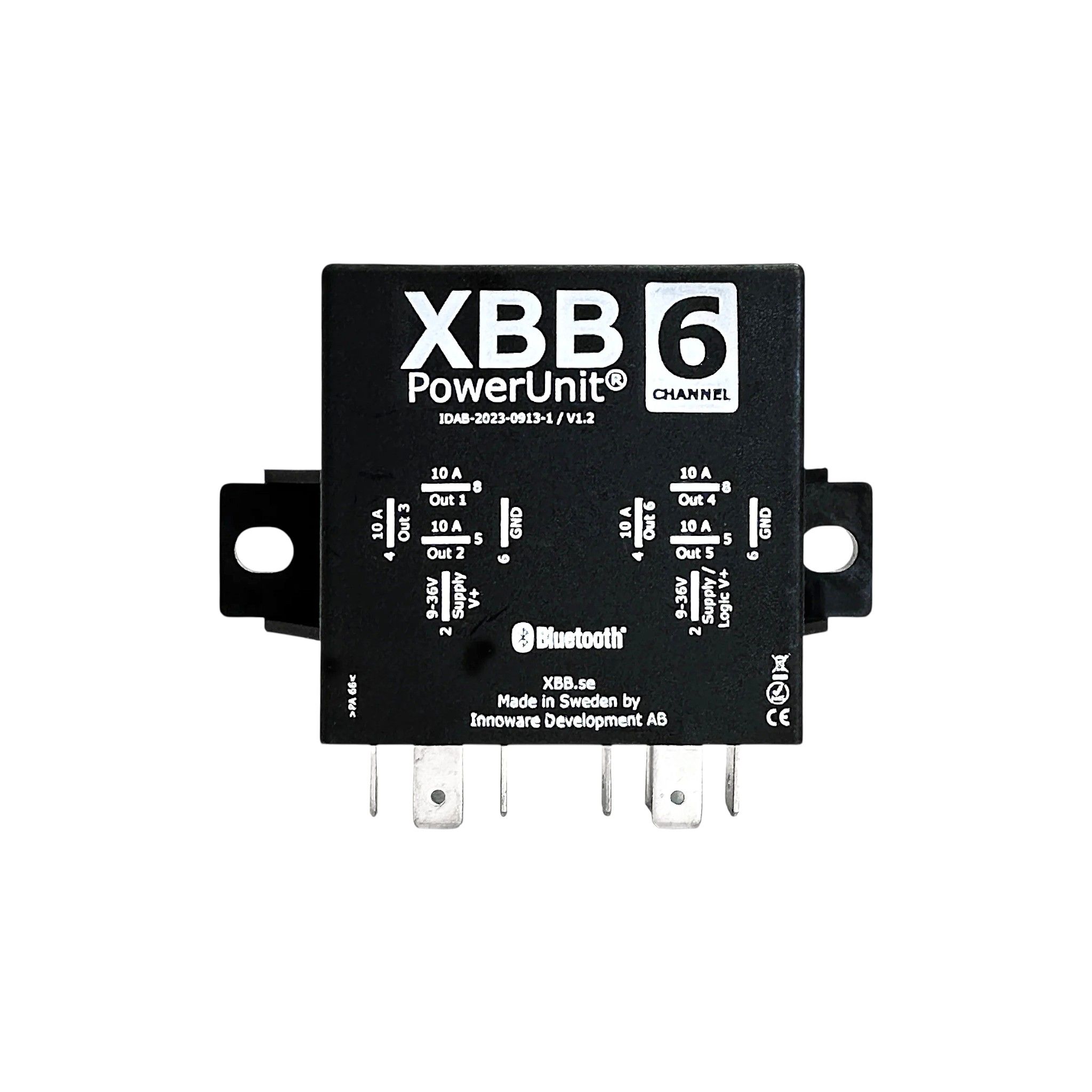

XBB PowerUnit 6 Relay

XBB PowerUnit 6® is a convenient solution for those who want to add control of extra lighting without tearing up half the interior to find signal cables. It is perfect when you have several extra lights or light bars and want to be able to turn different lights or position lights on/off individually.

Just like with the regular XBB PowerUnit®, you can connect up to four PowerUnit devices to a single XBB Dongle®, giving you up to 24 individual outputs if you need a lot of channels.

To work, the XBB PowerUnit 6® needs to be paired with an XBB Dongle® or PP-CAN-FD®. These devices listen to the car's CAN bus and detect active functions (e.g., high beam, reverse, ignition). The signals are then sent wirelessly via Bluetooth (BLE 5) to your XBB PowerUnit®, which in turn triggers the outputs you have selected in the app configuration.

Note: Always start the installation by mounting and configuring the XBB Dongle® and finding the right "recipe" for your specific vehicle.

Handles up to 6 functions in the same unit
6 outputs, 10 A per output
10 flat pin connectors 6.3 mm
Relay connection according to ISO 8092-1
Integrated mounting ears for easy attachment
Connects to XBB Dongle® or PP-CAN-FD®
