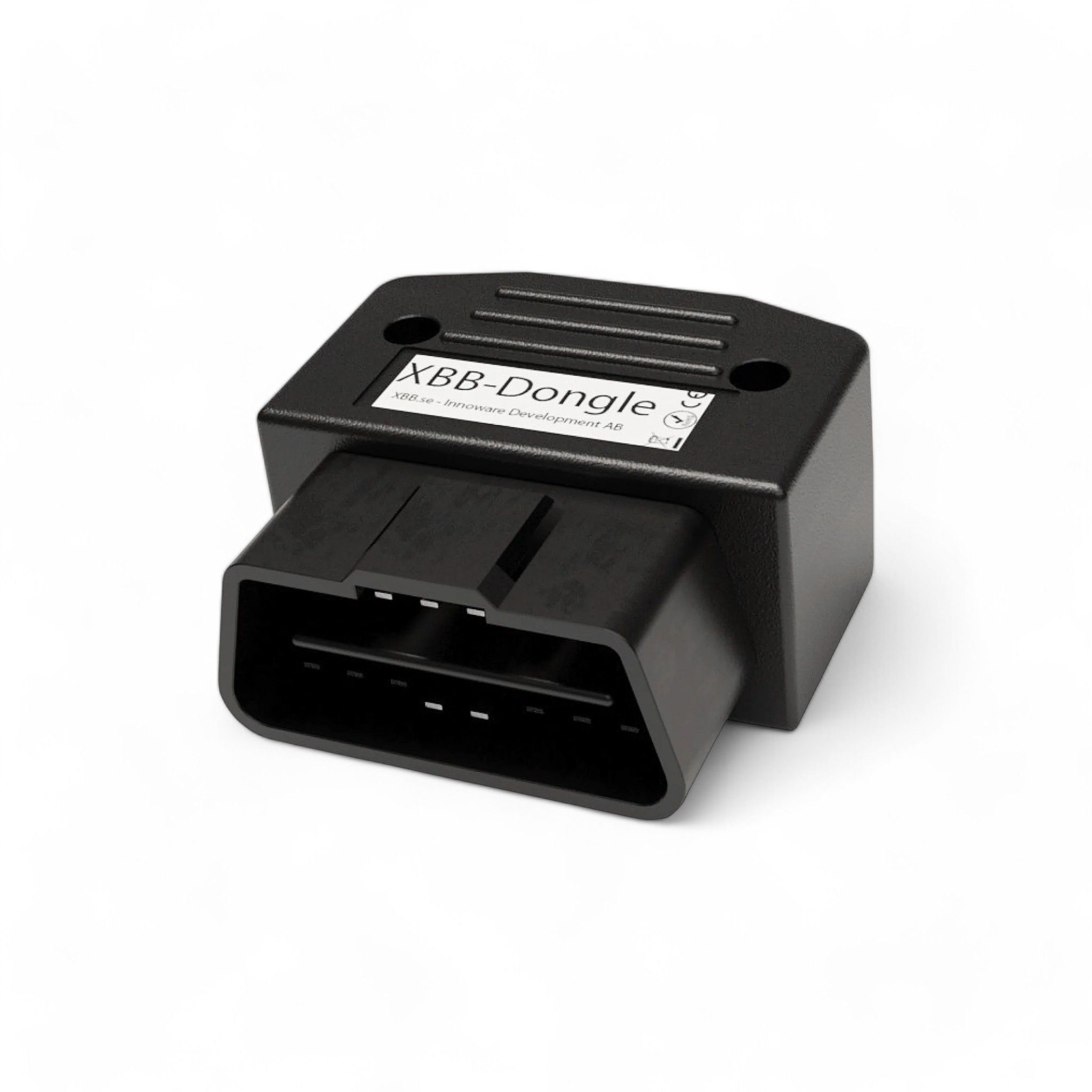

XBB Dongle OBD II
The XBB Dongle (OBD device) combined with the XBB PowerUnit (relay) provides a modern and easy solution for installing vehicle lighting. In today’s modern vehicles, it’s often no longer possible to connect auxiliary lights in the traditional way—with a relay and trigger signal from the vehicle’s factory-installed high beams—which was standard with halogen headlights. Vehicles with advanced lighting systems now require a CAN-bus interface to integrate aftermarket lighting.
The XBB Dongle is a unique CAN-bus interface that stands apart from other products on the market. Unlike traditional solutions, no electronics are connected directly to the vehicle’s internal CAN-bus system. Instead, the XBB Dongle uses information from the vehicle’s diagnostic socket (OBD).
Simple Installation Process:
Connect the XBB Dongle to the vehicle’s diagnostic socket.
Use the XBB Configurator app on your smartphone to test different settings and find the best configuration for your vehicle.
Once configured, proceed with installing the auxiliary lights and the XBB PowerUnit (relay).
Key Advantages:
An additional benefit of the XBB Dongle and XBB PowerUnit is their ability to access multiple signals from the vehicle. This allows you to control not only auxiliary lights but also functions like DRL lights, reverse lights, and more.
XBB PowerUnit Features:
Two individually controllable outputs.
Outputs can be controlled by separate signals or the same signal for both.
Outputs can be combined to increase capacity for higher power applications.
Output Specifications:
Output 1: Handles a load of up to 15 amps.
Output 2: Handles a load of up to 5 amps.
