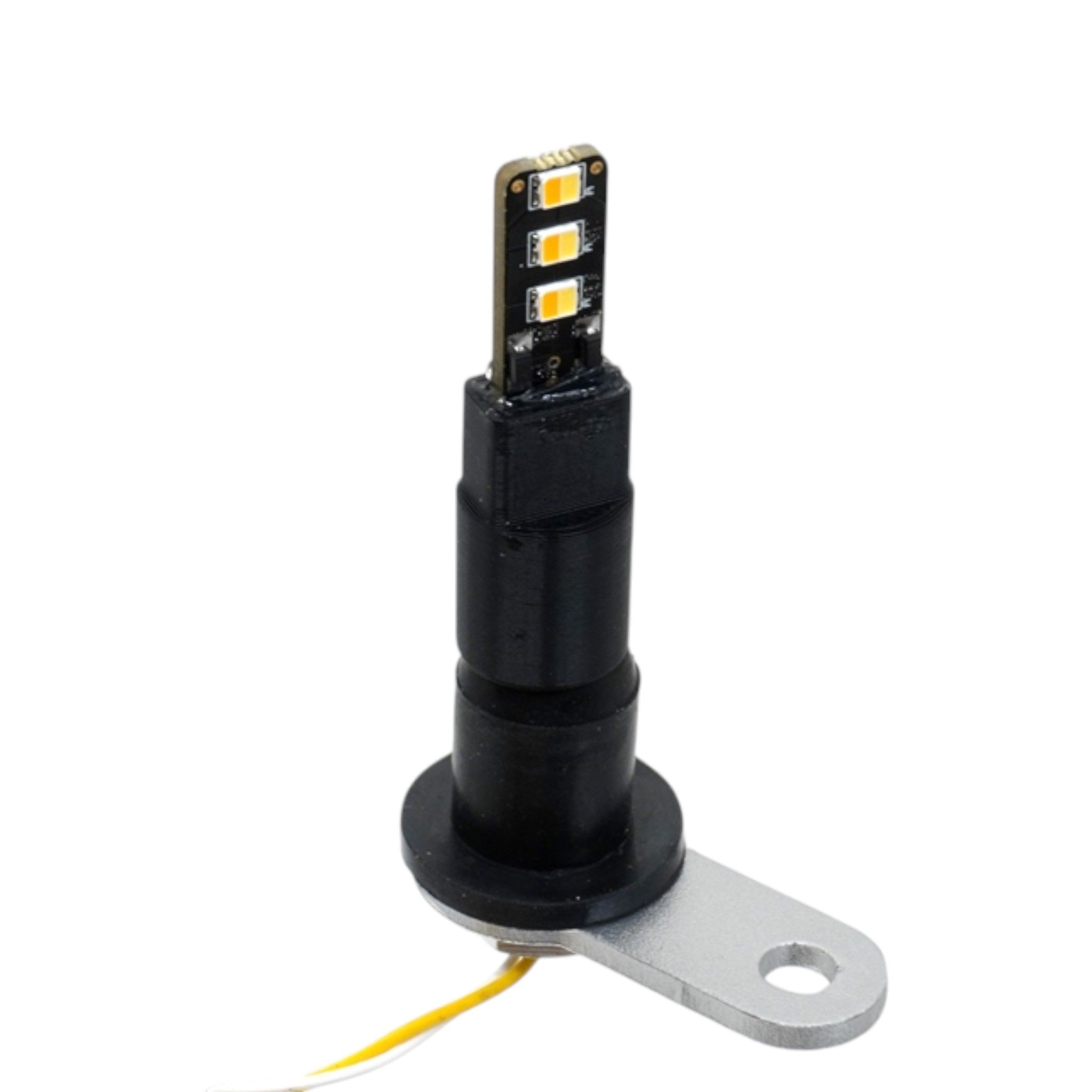

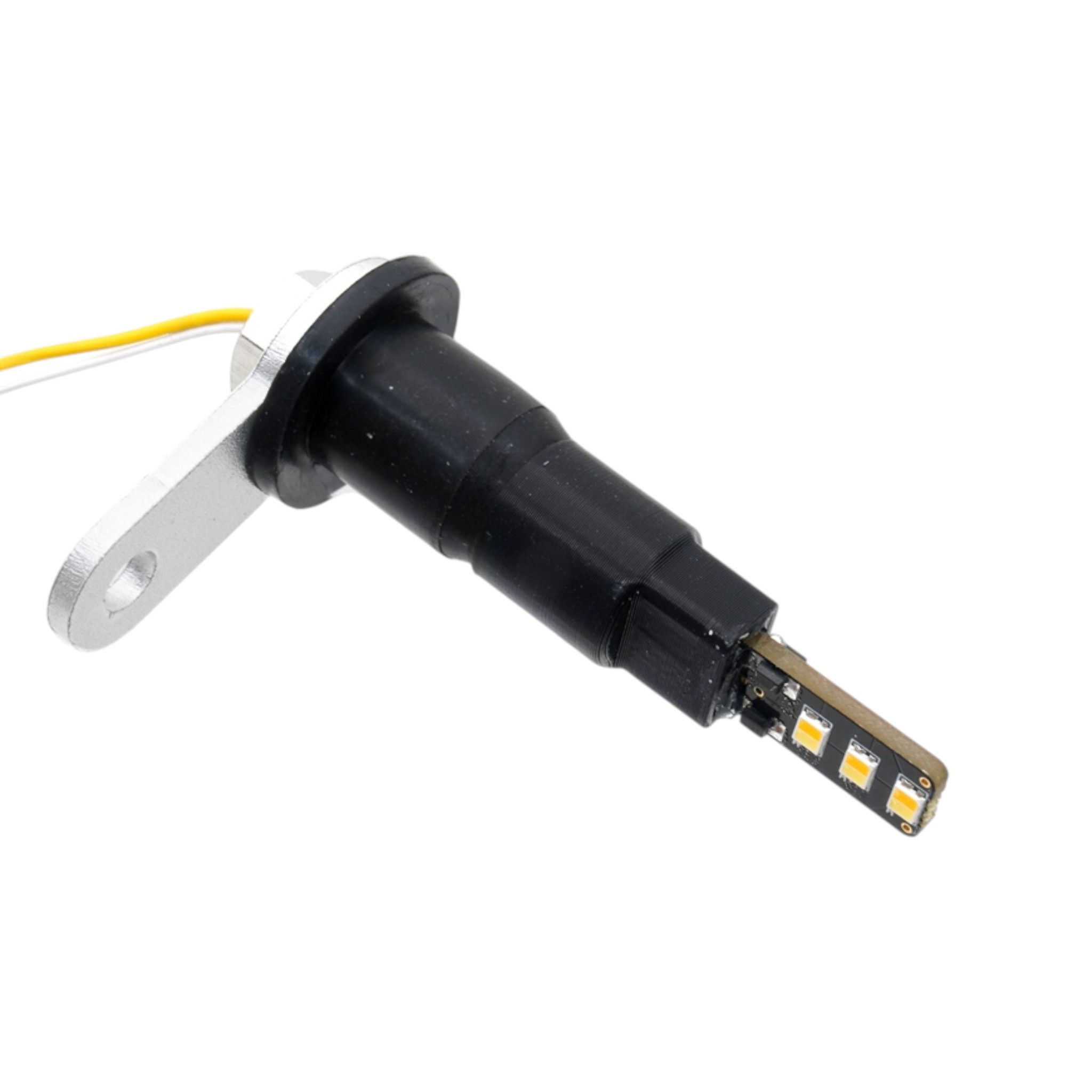

LED Multi Insert Dual Colour
A convenient LED insert that is completely waterproof and designed for installation in a 10 mm hole.
The lamp can illuminate in two colours: Xenon White and Orange. Connected to 24V, the colour is changed by reversing the polarity of plus and minus.
The LED insert is easily secured by tightening the bolt, which causes the included rubber nut / blind nut to expand and lock the insert firmly in the hole. Perfect when installing in hard-to-reach areas while still achieving a sealed and secure installation.
The insert has primarily been developed for small Michelin Men, where the included holder can also be used to secure the figure. However, it works just as well for other installations, for example as a position light or decorative lighting.
Installation:
You need to seal the thread and the hole in the nut yourself. We recommend using a flexible sealant so that it can be removed later if needed.
Also make sure that the thread in the LED insert is locked against the bolt.
Drill a 10 mm hole.
Insert the LED insert.
Tighten the nut on the back until the insert is firmly secured.
The entire insert can easily be disassembled, and the holder can be removed if needed.
