Lazer Linear 24 LED Work Light Bar 68cm
Lazer Linear-24 Flood is designed and engineered specifically for industrial sectors and offers outstanding lighting performance optimised for heavy vehicles. By using the same design and LED construction found in the Linear Elite range, the Linear-24 Flood produces a full 16,200 raw lumens.
Combined with a custom setup of ultra-reflective, vacuum-metallised optics, the light bar provides lighting perfectly suited for work cabins, whether in mining, construction, forestry or agriculture.
The light bar provides unmatched illumination in the area close to the front of the cab, while its length allows the light to spread out to the sides, creating a safer and more productive working environment.
With a power consumption of 168W, the lamp offers easier installation compared to using several smaller lamps to achieve a similar light level. Reduced installation time is an immediate benefit, together with reduced ongoing maintenance time and cost. Installing a single low-profile work light bar also has the advantage of being less sensitive to misalignment or damage.
Salt spray test: ISO 9227, 250H

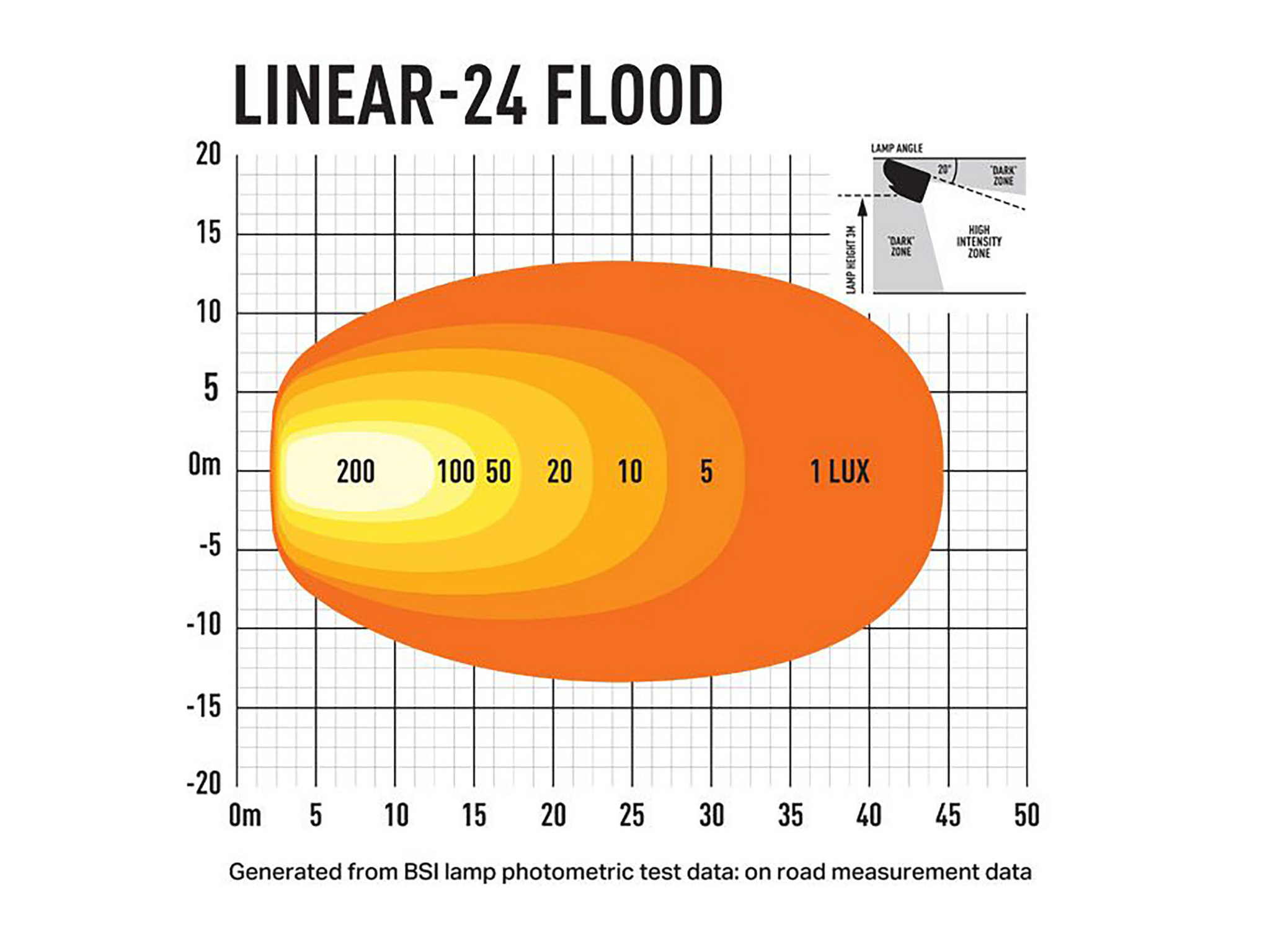

Beam pattern: Wide
Weight (kg): 1.5

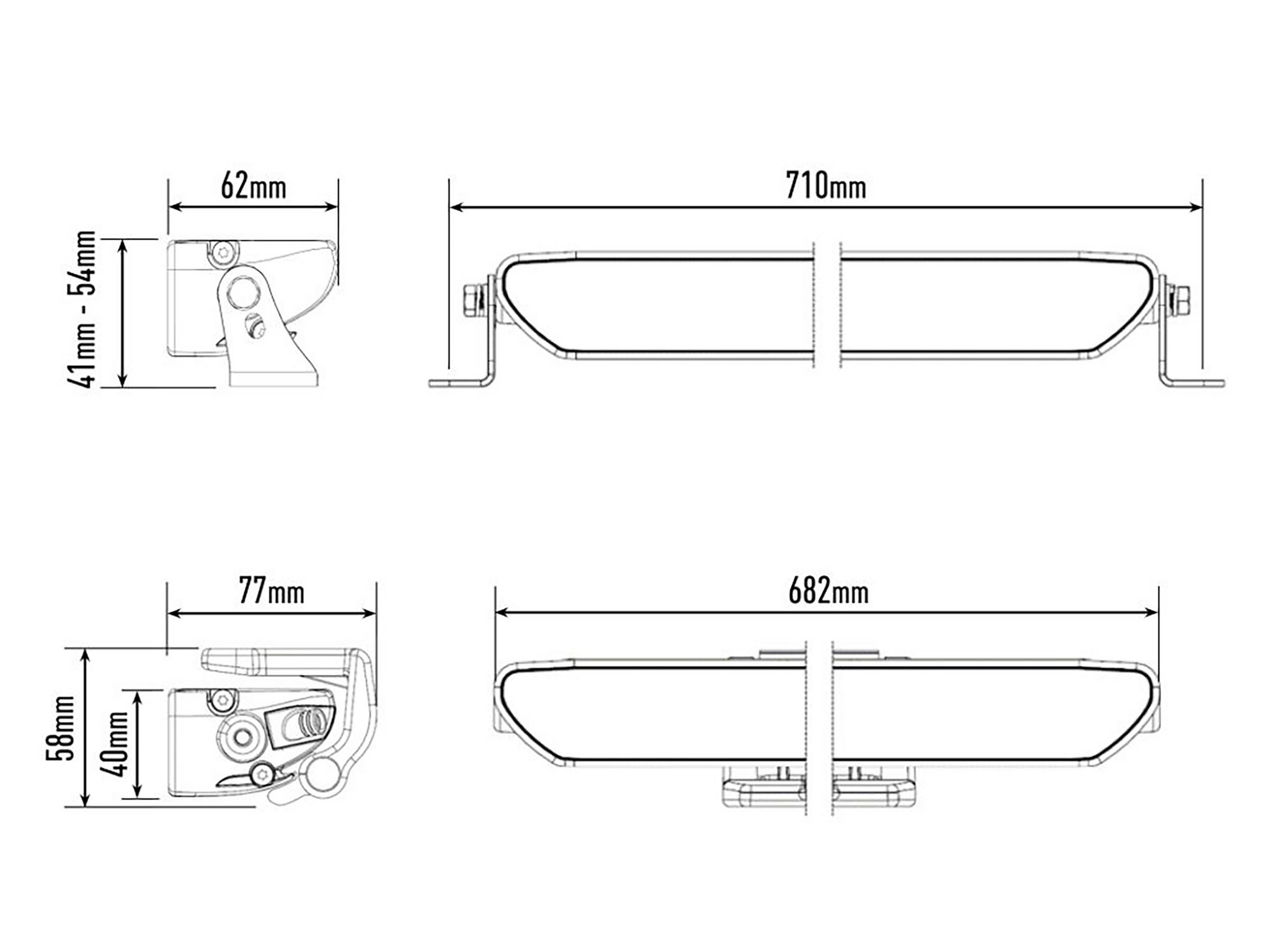

LxWxH (mm): 682 x 40 x 62
Theoretical lumens: 16200
LEDs: 48 pcs
Vibration: 10Hz–2000Hz, 10gn
EMC: CISPR-25, Class 5
Lamp housing: Aluminium
Lens: PC
Colour temperature (K): 5000K
Lamp type: LED
Connection: DT connector
1 lux at (m): 44
IP rating: IP67
Temperature range: -40°C to +90°C
Voltage (V): 10–32V
Wattage (W): 168
