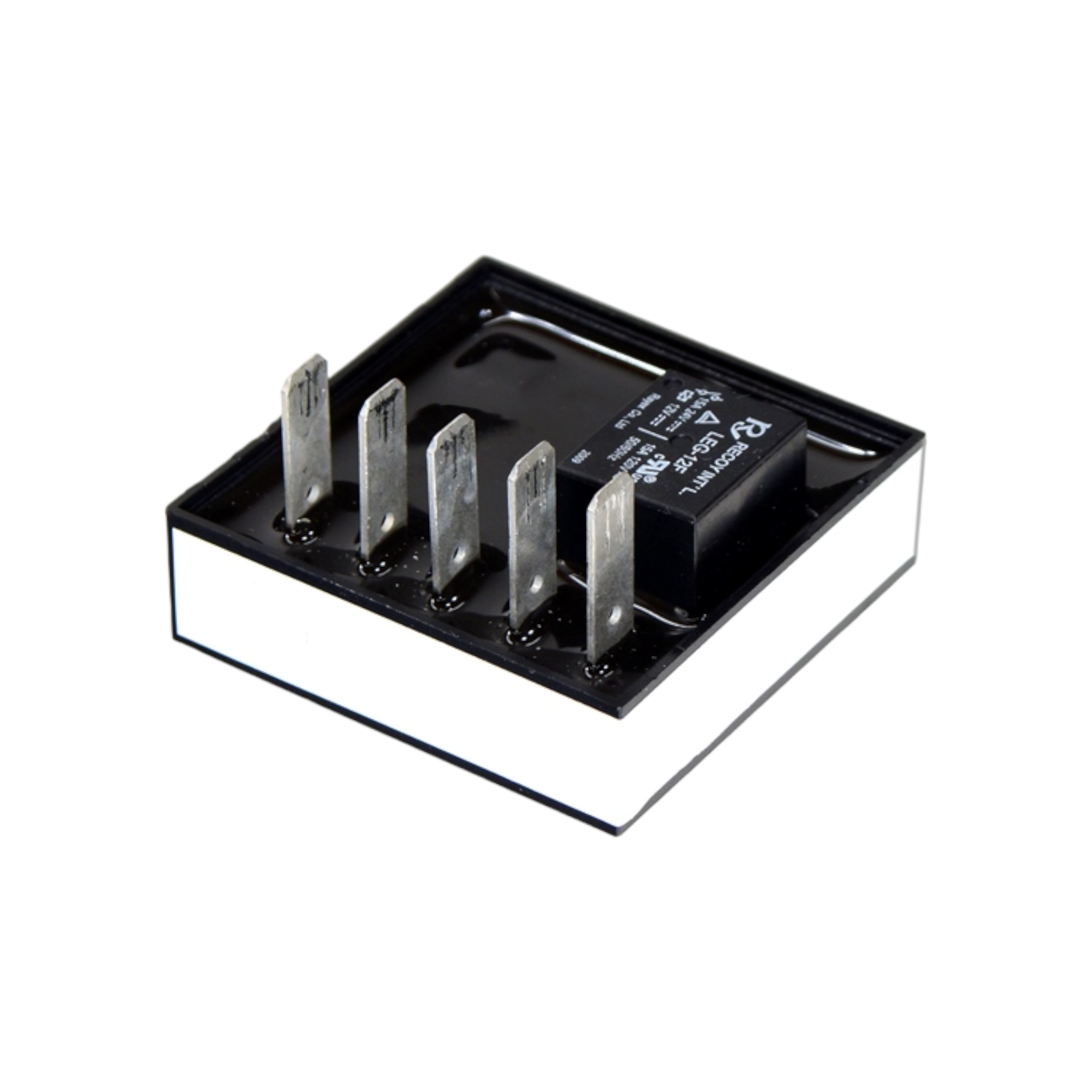

Small and flexible control box used to change the color of a two-color LED light source, e.g. our LED replacements for Double Burners , T10 Dual Color, BA15s Dual Color etc. with the help of a switch.
For example, if you have a two-color light source in orange & white, you need to switch places on the plus and minus cables to change the color. This is done most easily by connecting power to the box, then power to the lights and a switch from the box to the selected location. Then you use the switch to easily change the color.
It is fine to connect several light sources to the same control box, up to 6A/144watt max.
Connection:
-
IN -: Connect minus from the truck (24V power supply).
-
IN +: Connect plus from the truck (24V power supply).
-
- OUT: The output for lamps to be used, negative pole (24V).
-
+ OUT: The output for lamps to be used, positive pole (24V).
-
FLIP: Connect plus cable from switch (24V).
If you need help to assemble or which box to choose, it is of course fine to contact us for support!
