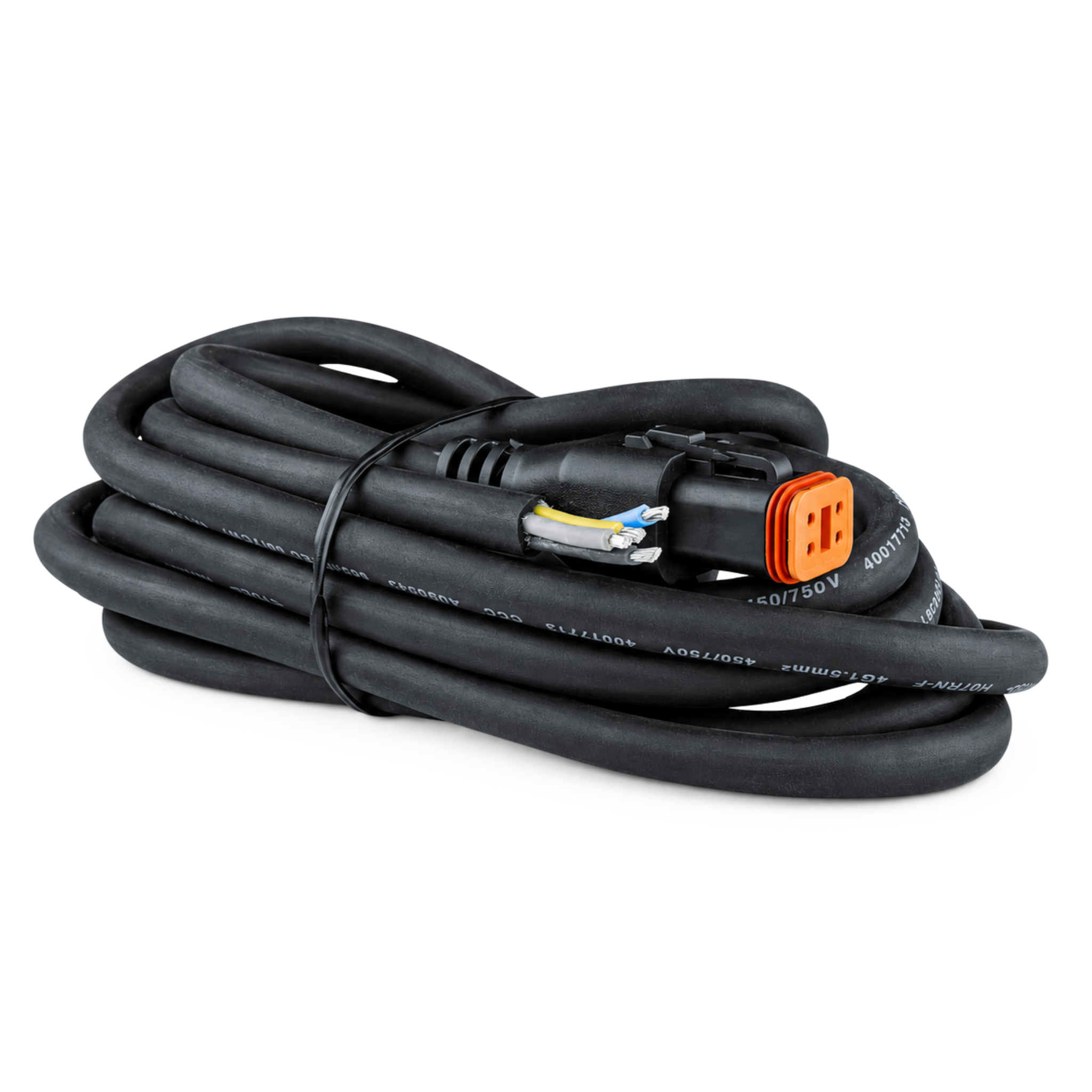

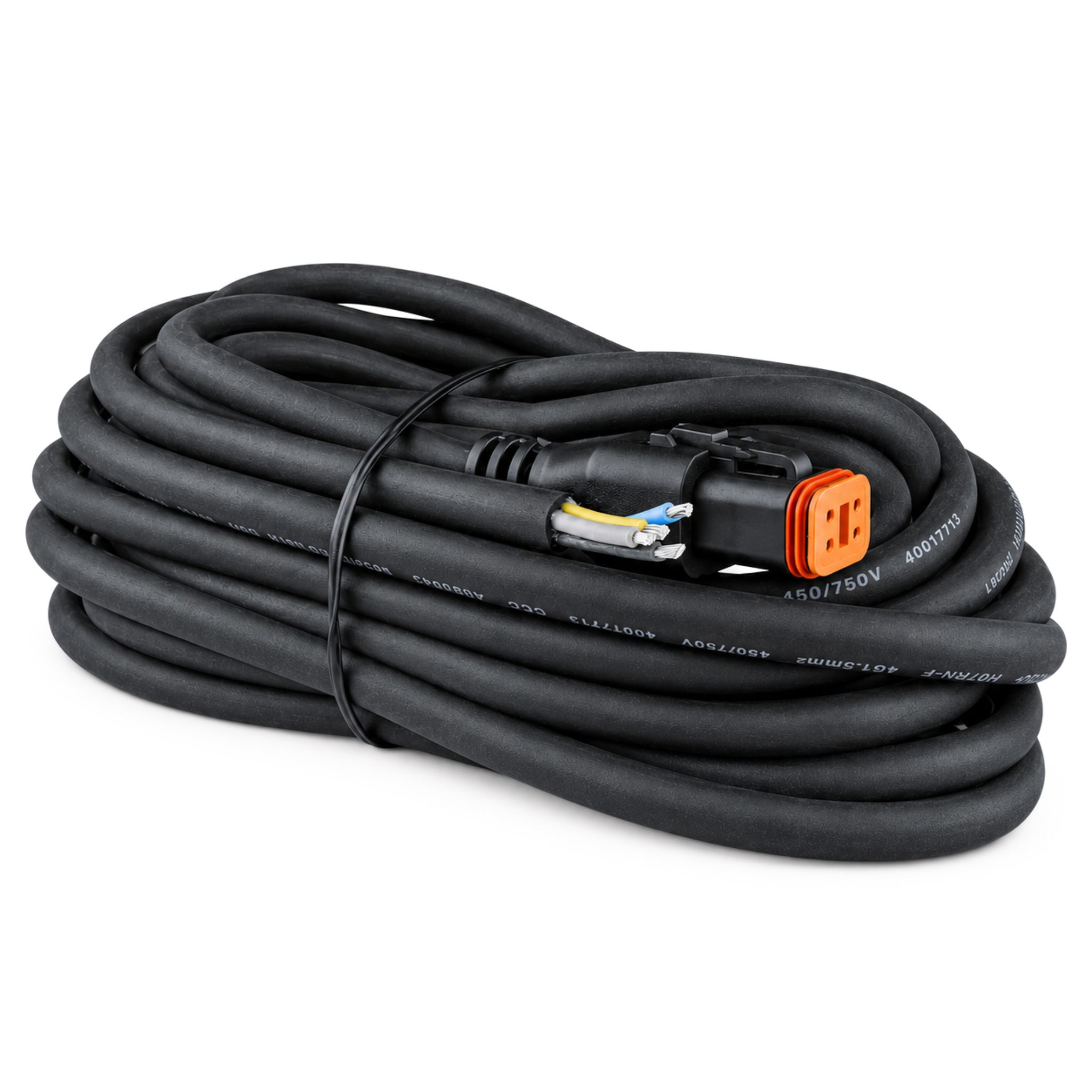

DT 4-pin Male Wiring Harness

Pre-assembled, ADR-approved wiring harness with a 4-pin Deutsch DT male connector at one end and unterminated wires at the other. Ideal for easy and safe connection of vehicle lighting and other electrical accessories.

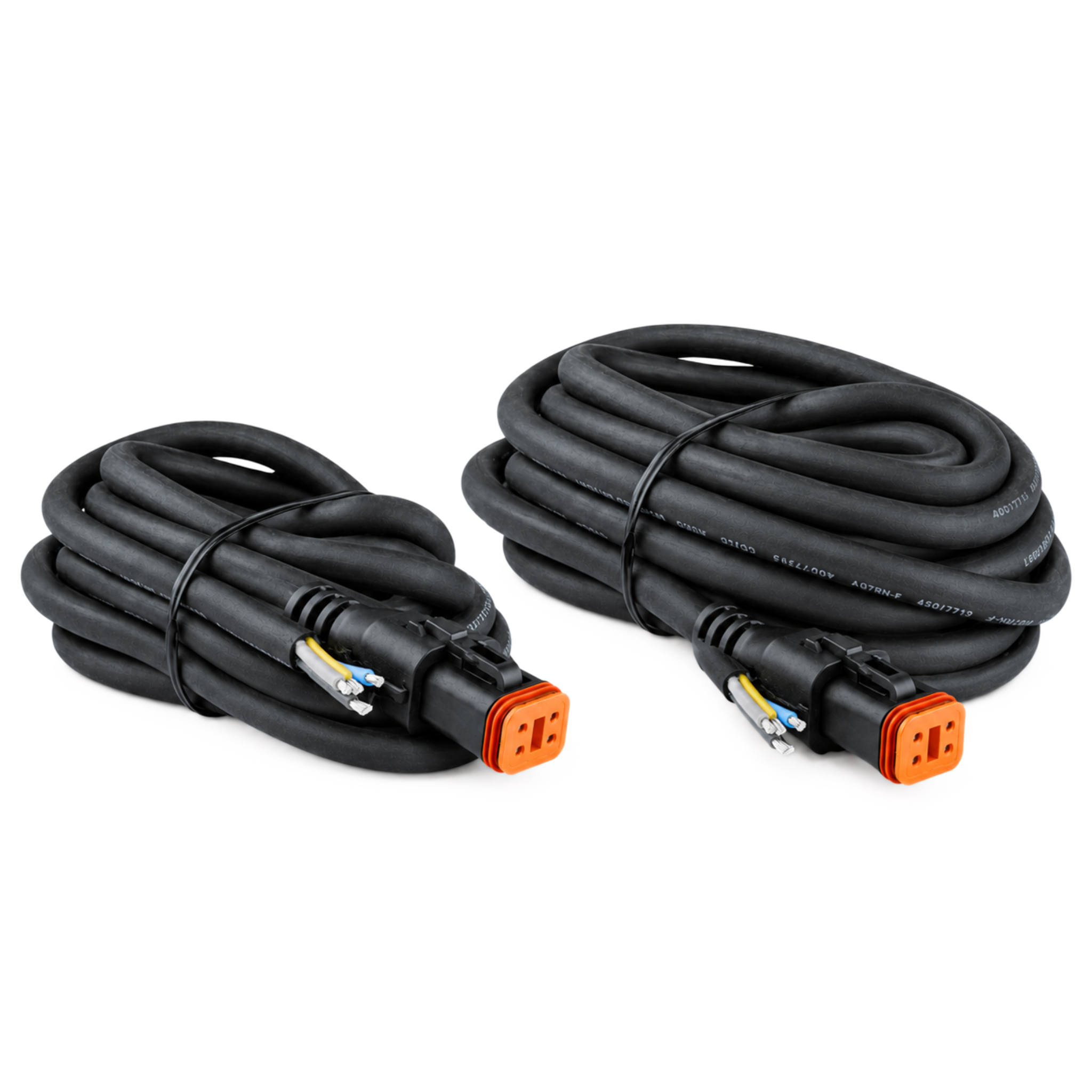

Available in two cable lengths: 3 m and 5 m.

Specifications:

• Connector: 4-pin Deutsch DT male

• Conductor cross-sectional area: 1.5 mm²

• Maximum load: 13 A

• Wire colours: Brown, yellow/green, blue and black

• Pin 1: Brown (+)

• Pin 2: Yellow/green (−)

• Pin 3: Blue (White position light)

• Pin 4: Black (Amber position light)
