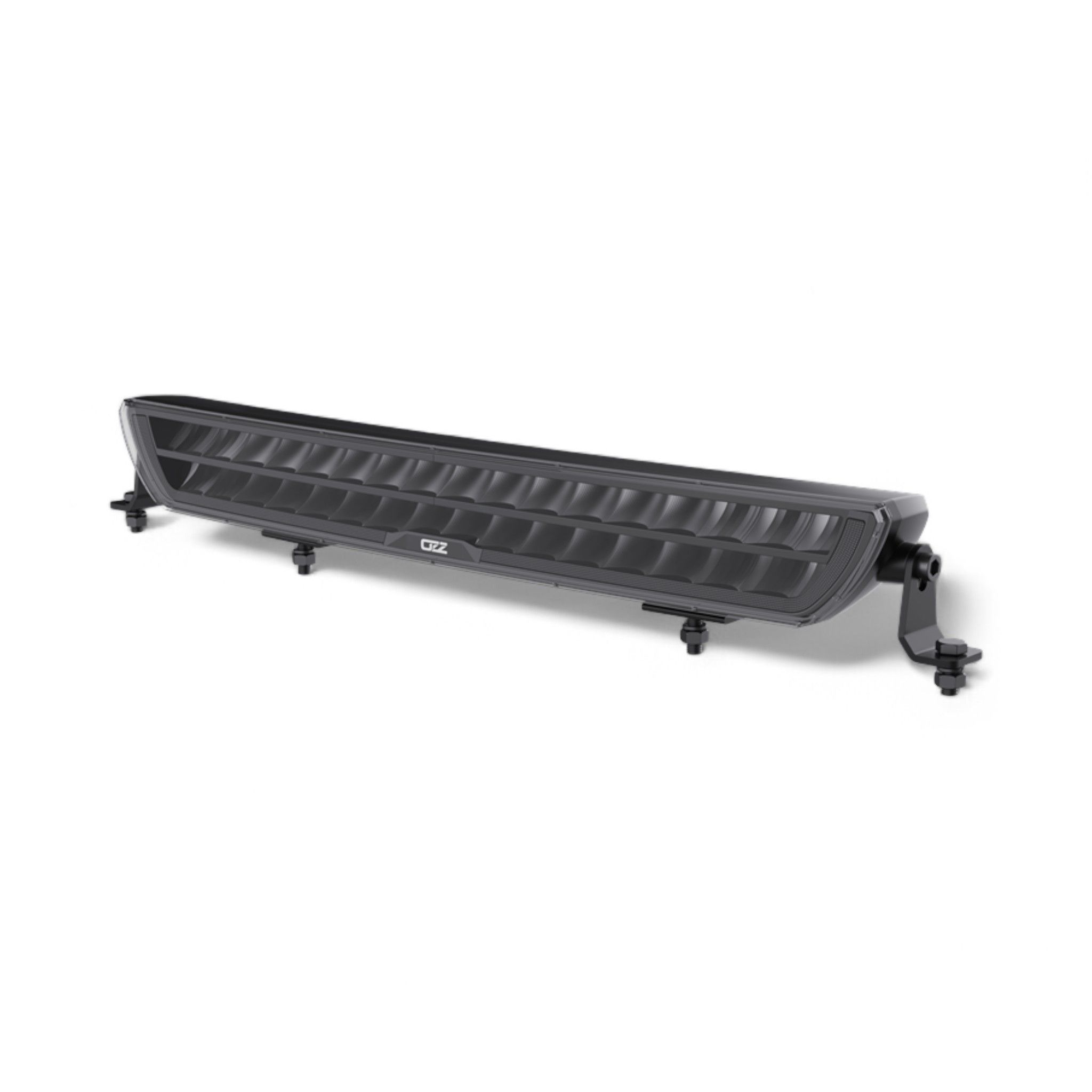

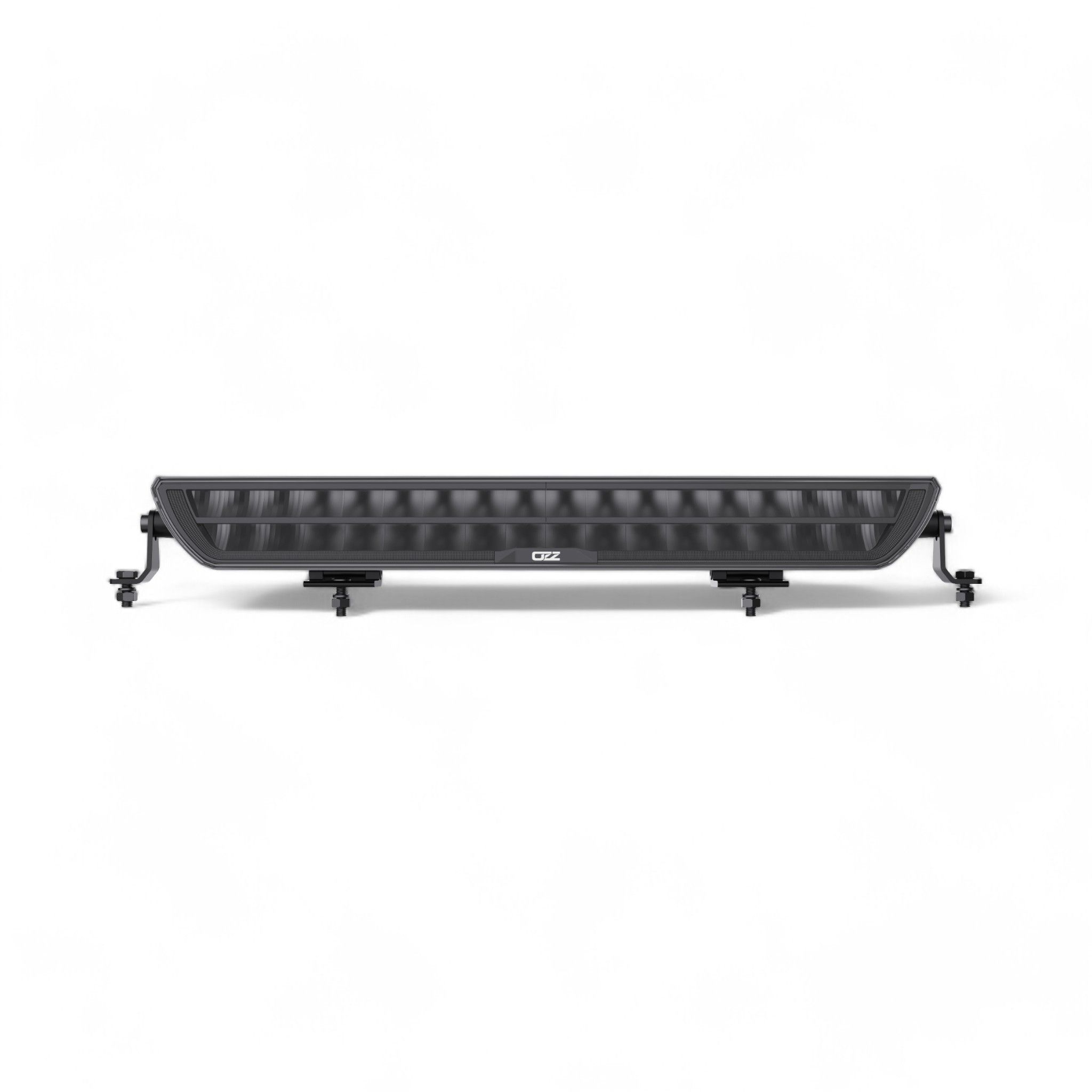

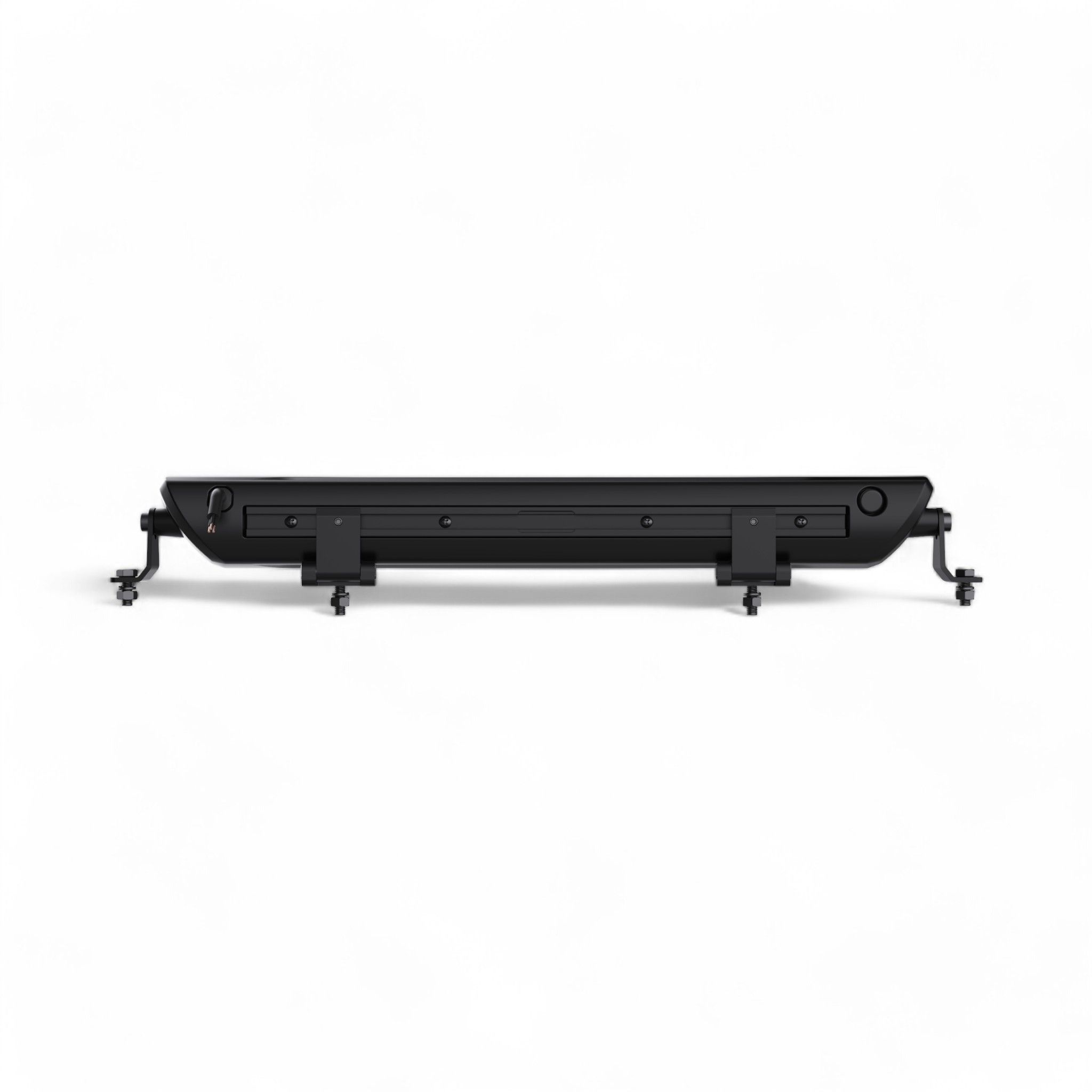

OZZ DRB1 P20" LED Light Bar Black

The OZZ DRB1 is a high-performance dual-row LED light bar that combines advanced technology with a robust design. Featuring 34 powerful diodes, it delivers an impressive luminous flux of 9900 lumens in boost mode and 8070 lumens in ECE R112 mode, providing an impressive reach of up to 620 meters at 1 lux. The dynamic position lighting offers both white and yellow light, providing flexibility for various needs and environments. Built to withstand tough challenges, the DRB1 is IP68/IP69K rated, making it dust- and waterproof. Additionally, it meets international standards such as ECE R112 and EMC ECE R10. With a combination of durability, performance, and sleek design, the OZZ DRB1 is a reliable choice for those seeking a premium LED light bar.

• Lamp Type: LED

• Number of Diodes: 34

• Operating Voltage: 10-32 V DC

• Power (12V): Boost: 134W, R112: 106.2W

• Power (24V): Boost: 131.5W, R112: 103W

• Current Consumption (12V): Boost: 11.16 A, R112: 8.85 A

• Current Consumption (24V): Boost: 5.47 A, R112: 4.29 A

• Theoretical Luminous Flux: 18,020 lumens

• Actual Luminous Flux: Boost: 9900, R112: 8070 lumens

• 1 Lux Reach: Boost: 620 m, R112: 480 m

• Color Temperature: 5000 K

• IP Rating: IP68/IP69K

• Beam Pattern: Driving

• Position Lights: Dynamic (White and Yellow)

• Connection: 4-pin DT (male + female) with 1000 mm cable

• Material: Aluminum, polycarbonate, stainless steel

• Dimensions (mm): 546 x 76 x 65/77

• Temperature Range: -40°C to +60°C

• ECE Marking: R112

• Reference Number: 50

• EMC Standard: ECE R10

• Warranty: 3 years
