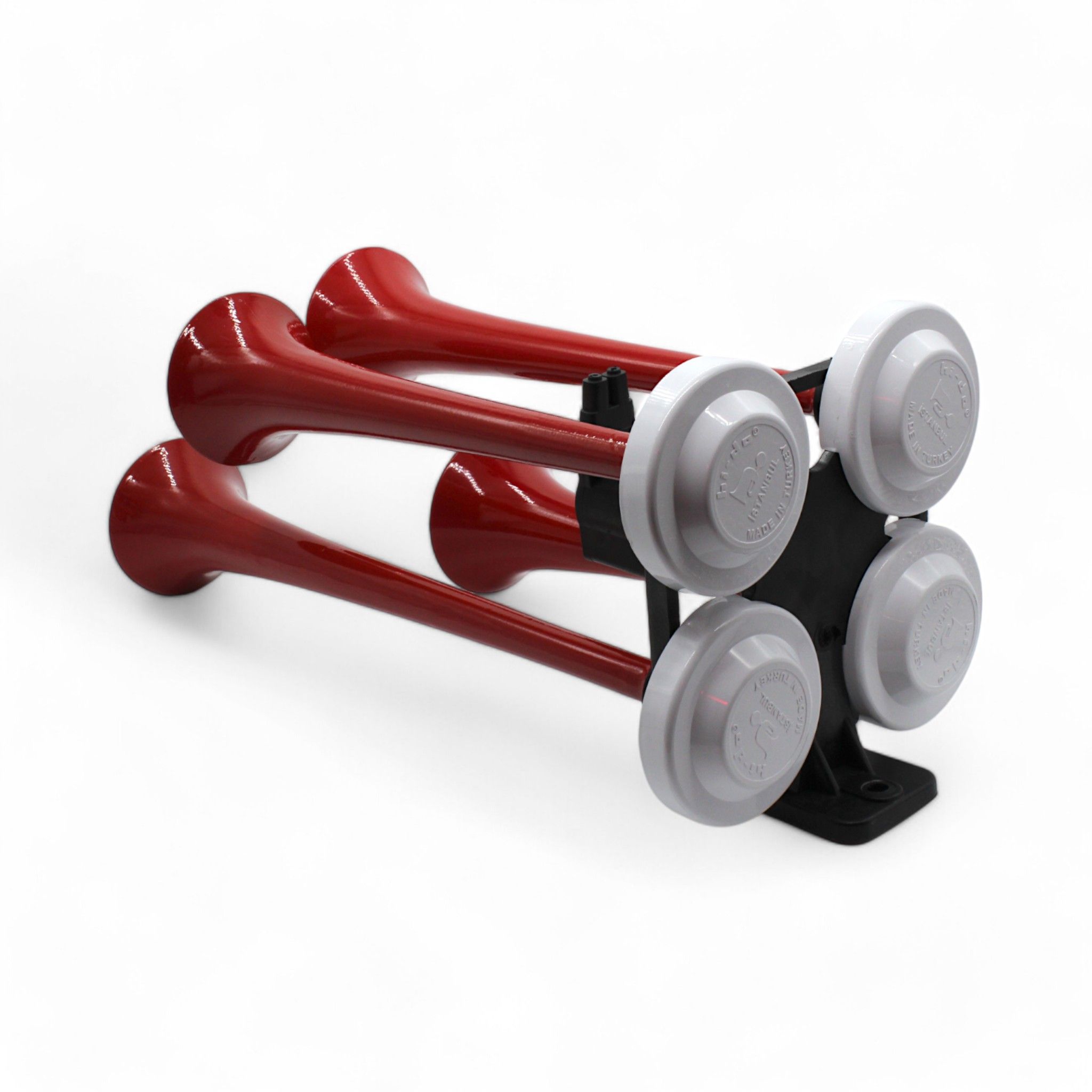

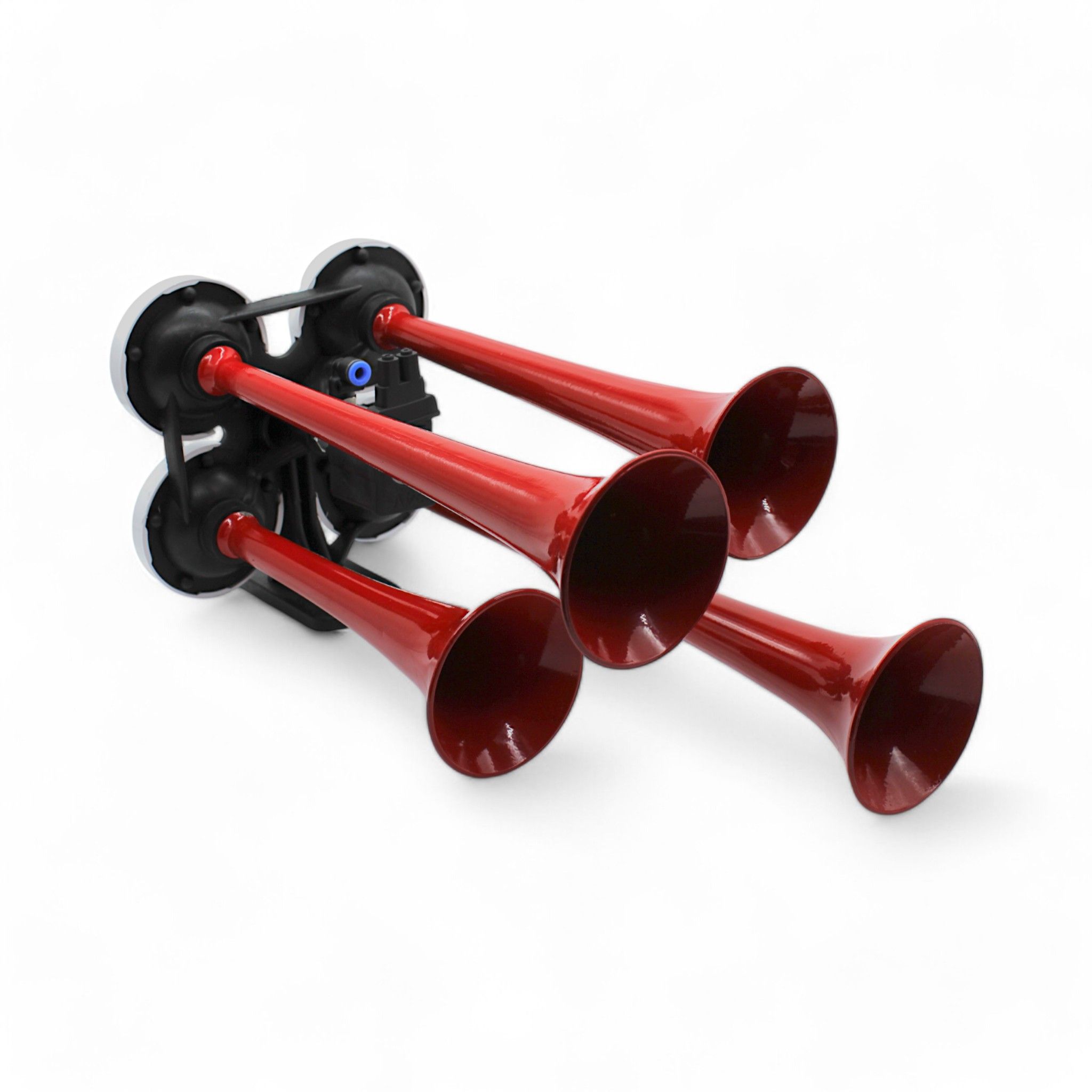

Hi-Do Quadruple Air Horn

Four-pipe horn with a very loud sound signal. Designed for performance and reliability, it delivers a sound level of up to 125 dB(A) ±5 dB at a distance of 2 metres. Perfect for anyone who wants to make sure they are heard in every situation.

Installation: Mounted using the brackets fitted to the horn. It is then supplied with constant compressed air, 6–10 bar via a 6 mm air hose, and controlled with 24V through the connectors on the horn, 6.3 mm flat terminals.

Voltage: 24V
Current at 24V: 2A
Air pressure: 6–10 bar
Sound level at 2 metres: 125 dB(A) ±5 dB
Frequency: 340–430 Hz
