Breeze X1 Tail Light
Recommended accessories
Breeze X1 from Ledson is an ultra-slim multifunction rear light with a depth of only 28 mm. Its sleek design and modern LED technology give the vehicle an exclusive appearance, while the compact construction makes installation easy.

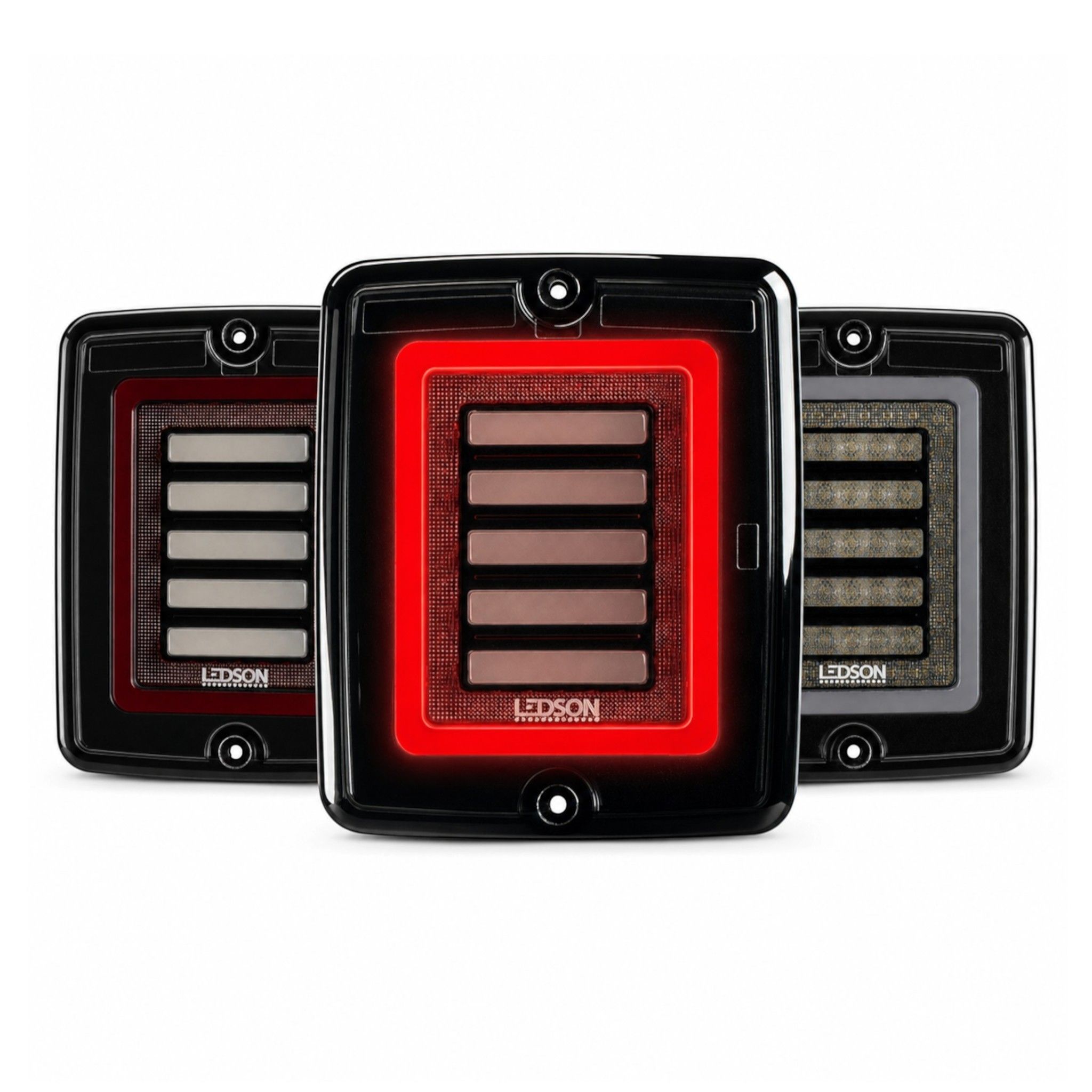

Breeze X1 is available with either a clear or smoked lens and in three approved versions:
Tail light, brake light and indicator
Tail light and reversing light
Tail light and rear fog light
The indicator version features a built-in dynamic indicator function and allows up to four lights to be connected per side. The light can be mounted either horizontally or vertically, with both mounting positions E-approved in accordance with ECE R148. Cable length: 2.5 metres.
Indicator wiring:
For synchronised indicators, connect the yellow wires of the lights on each side. For a dynamic, sequential indicator pattern, connect the lights in sequence from the innermost to the outermost light. Complete wiring instructions can be found in the included instruction manual.
Important installation information:
Only use the supplied screws. Tighten the screws carefully by hand. Do not use electric or pneumatic tools. The recommended tightening torque is approximately 0.4–1.0 Nm.
IP rating: IP67
Voltage: 10–40 V
