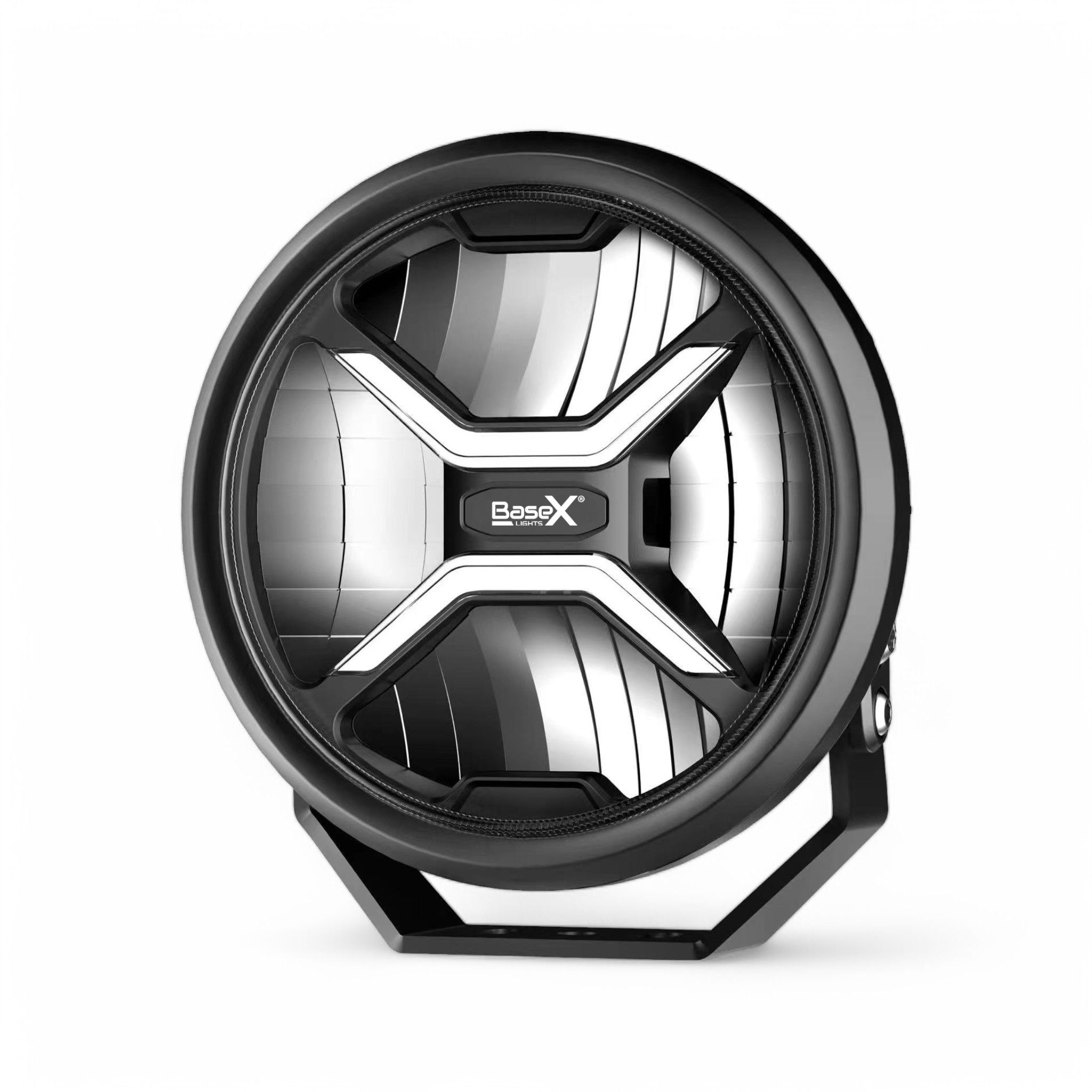

BaseX Auxiliary Light LED 9" Position Light

BaseX Lights presents a sophisticated, E-approved auxiliary light designed to deliver exceptional performance and style. With a powerful 120-watt beam and an eye-catching X-shaped position light, it offers a dynamic startup function in two selectable colors: white and amber. Thanks to the boost function, this light achieves an impressive 1 lux at 575 meters. Built with a lightweight aluminum housing and a robust polycarbonate lens, it ensures durability and reliability in all conditions.

Technical Specifications:

• Reference Number: 20

• Position Light: White or amber with dynamic startup

• Voltage Range: 10–32 V

• LED Configuration: 2 x 40 W + 2 x 20 W

• Color Temperature: 5700 K

• Power Output: 120 W

• Theoretical Lumen Output: 11,000 Lm

• Actual Lumen Output: 6,700 Lm

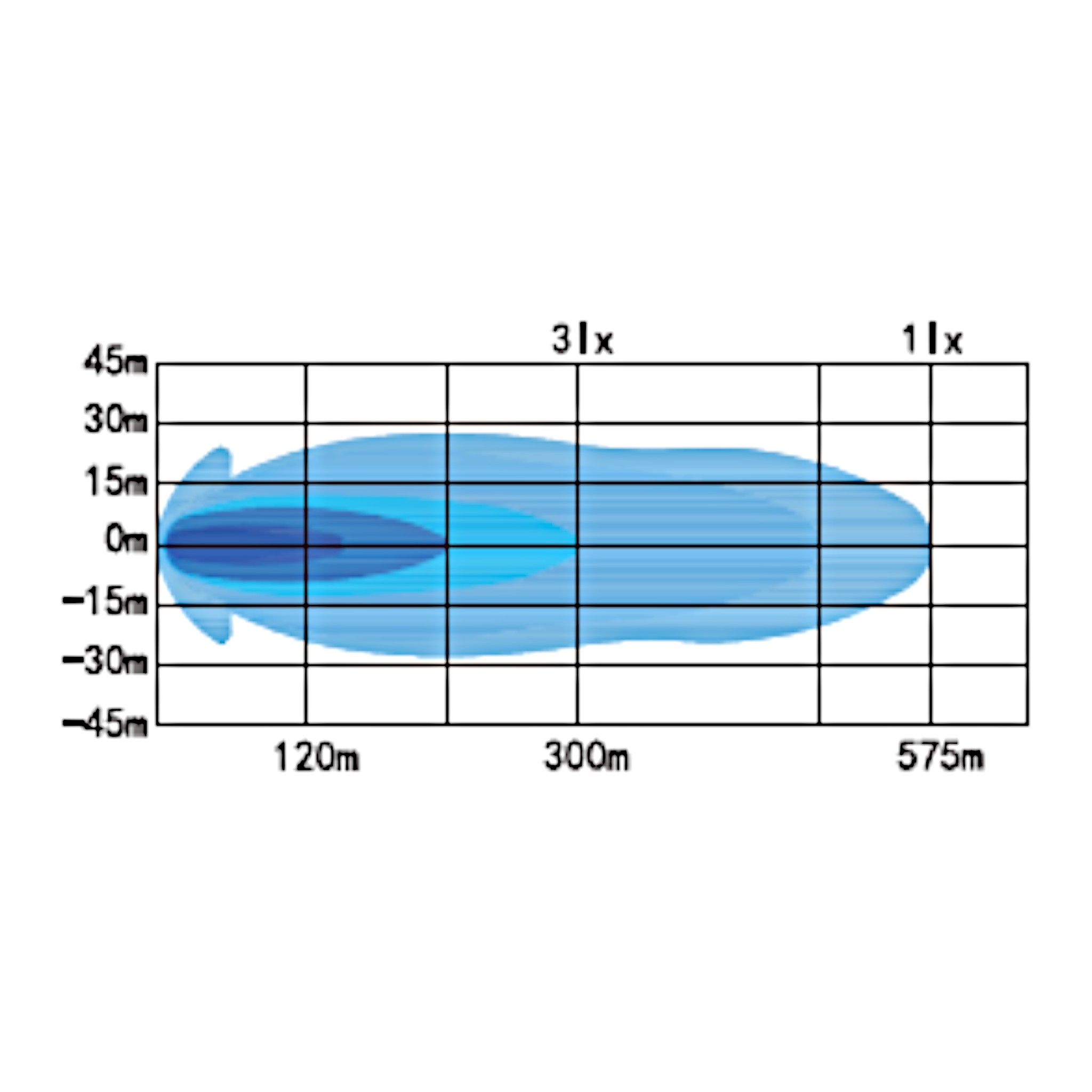

• 1 Lux Distance: 575 m

• Dimensions (WxHxD): 220 x 236 x 80 mm

• Ingress Protection Rating: IP67, IP69K

• Certifications: CE, ECE R10, ECE R148, ECE R149

• Connection: DT4 + ECE Cable

• Warranty: 2 years

The BaseX Lights auxiliary light combines modern design, advanced features, and exceptional performance, making it the perfect choice for those who demand style and functionality.
